Doors & Windows

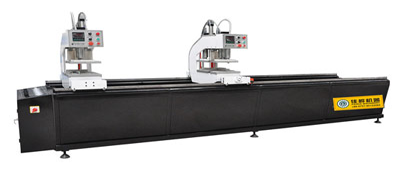

The two head of the machine is controlled by PC machine. They are pneumatically drove. Its movement adopts linear motion ball bearings in CM non-oil lubricated bearing cartridge. The precisions is high, the operation is simple and the maintainance is easy. The two heads can move singly or together at will. The welding is finished by the organic combination of the two heads. One head can weld any angle, meeting the users demand for the welding of windows and doors which have different shapes like arc.
|Model||Input power||Power supply||Air Pressure||Welding height||Welding width||Welding range||Overall dimension||Weight|
|HJ02-3500.2/2A||2.5kw||220V/50Hz||0.5~0.8Mpa||20~120mm||120mm||400~3500mm||4300 x 900 x 1650||800kg|

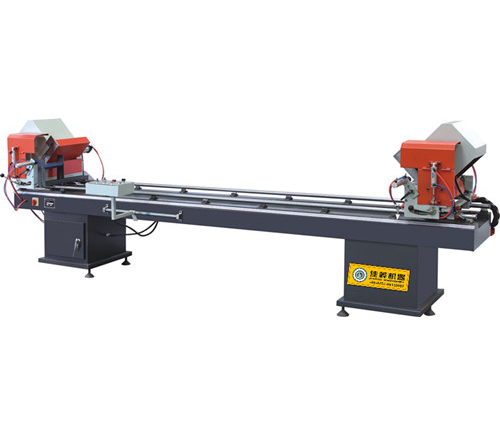

It is used for the cutting of aluminium alloy or PVC plastic materials which is in angle of 45°~90°, being able to work effectively and operate flexibly. Adopt automatic opening and closing the cover, oil dampling cylinder, feed stable, high security, it is the necessary equipment in the plastic windows and doors industry.
|Model||Input power||Power supply||Air Pressure||Motor rotary speed||Saw blade specification||Processing range||Cutting width x height||Overall dimension||Weight|
|0.5~0.8Mpa||2840r/min||400 x 30mm||450~3500mm||100 x 160mm||4000 x 900 x 1500||600kg|

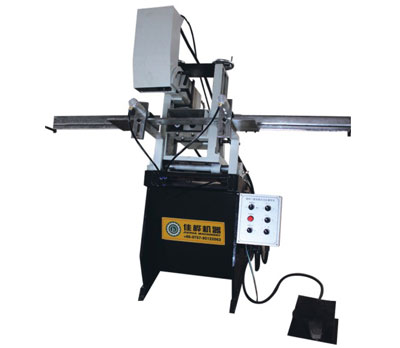

Used for processing plastic drainage hole, adopts modular structure design, work each machine head can single fire linkage, which can be freely selected, convenient control. All working combinations of head through the electrical box select switch to complete.
|Model||Input power||Power supply||Air Pressure||Motor rotary speed||Cutting depth||Overall dimension||Weight|
|SCX02-2x60||2 x 0.38kw||220V/50Hz||0.4~0.6Mpa||25000r/min||30mm||1600 x 800 x 1500||300kg|

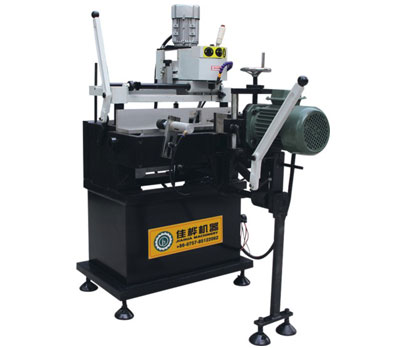

Used for copy-routing processing various kinds of holes, groovesand water-slots on aluminum windows and doors.
By copying template and auxiliary positioning two copying method.
Using a foot switch control the pressing cylinder, safe and reliable.
It has features of compact structure and small volume.
|Model||Input power||Power supply||Air Pressure||Diameter of the there-hole drilling head||Distance of the there-hole drilling head||Cutting angle||Cutting length||Overall dimension||Weight|
|SCX02-2x60||1.1+0.75kw||380V/50Hz||0.6~0.8Mpa||Ø10 x Ø12 x Ø10||21.5 x 21.5mm||Ø5, Ø8||290 x 90mm||1000 x 1300 x 1600||300kg|
